Features & Benefits
- Standard colours ready to print;
- Durable ceramic based inks;
- Grade “A” toughened safety or heat strengthened glass.
Applications

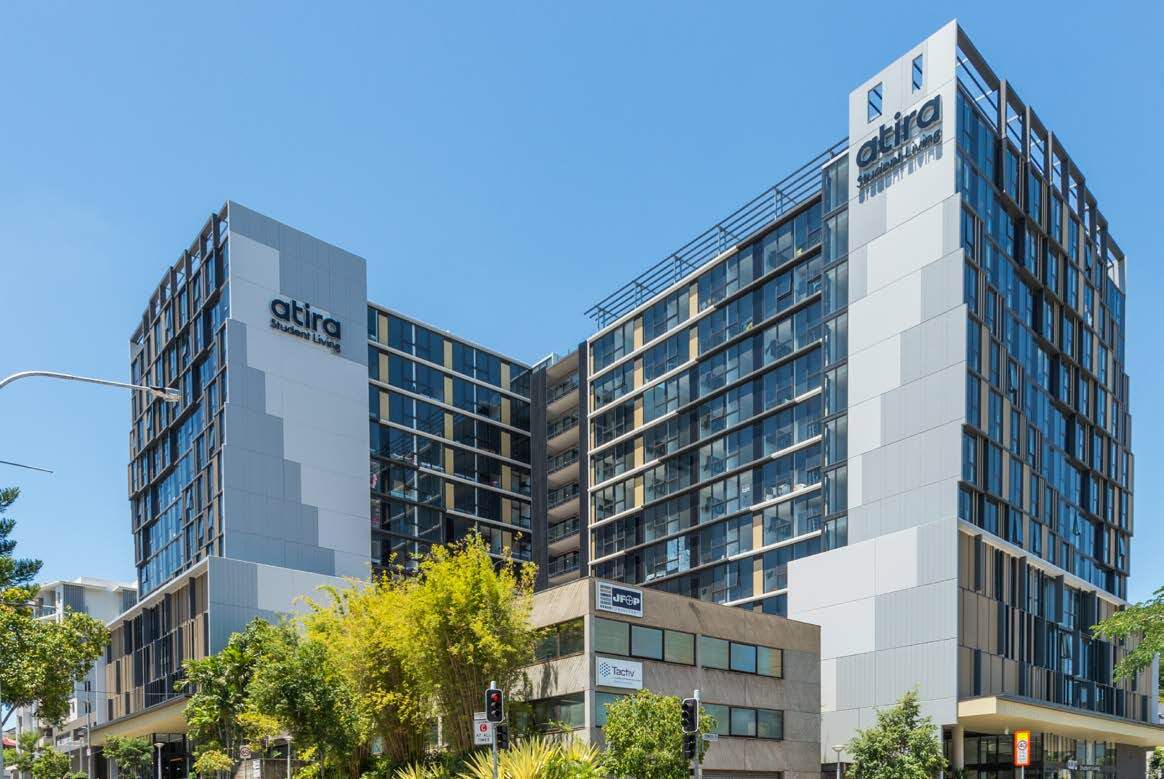

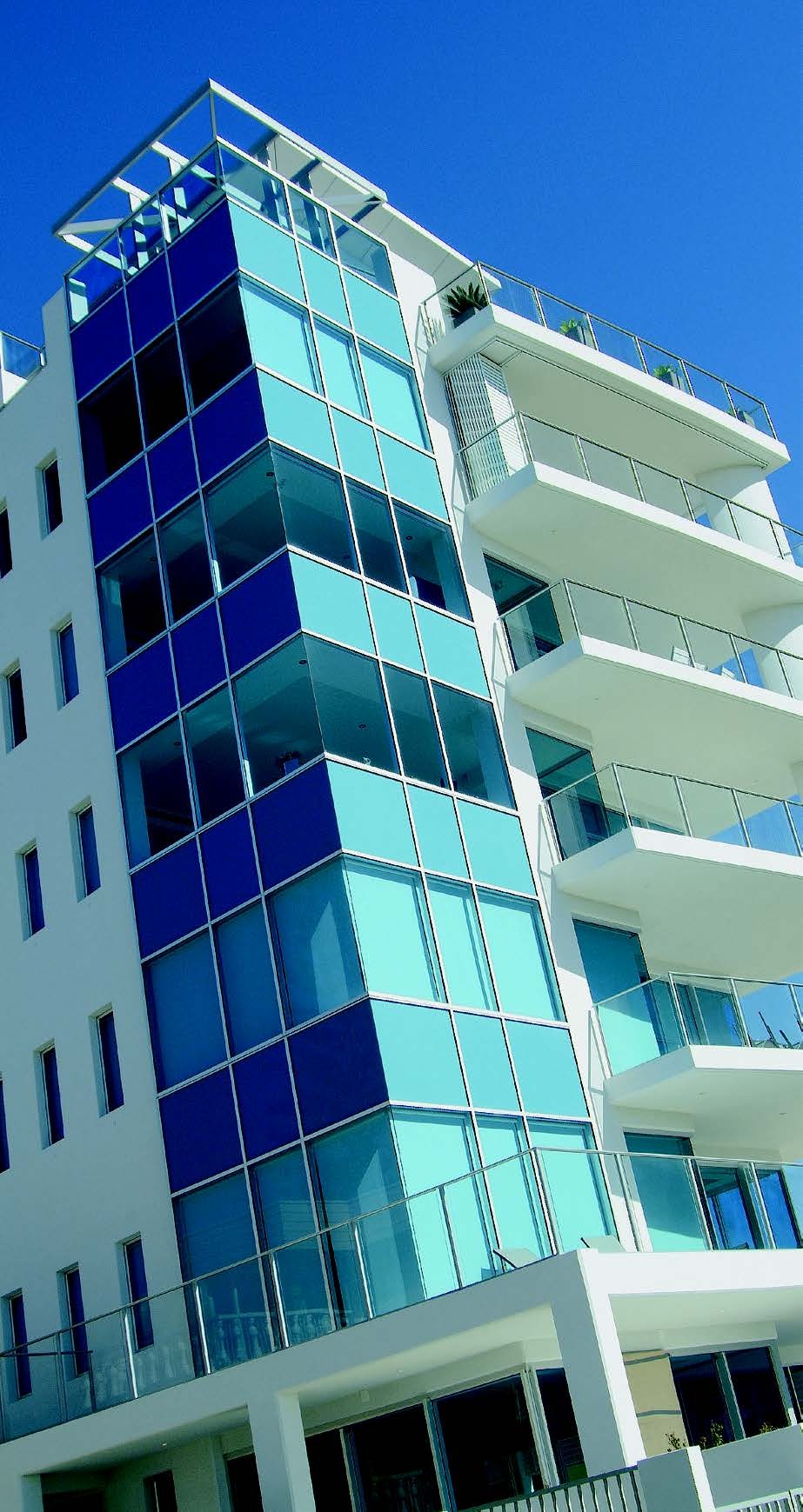

Residential and commercial glazing for spandrel and cladded glass applications.
Size Limits
Maximum Size – 5050mm x 2800mm
Minimum Size – 400mm x 400mm
Glass thickness – 4mm – 19mm
*subject to glass types, thickness and design specifications.
Design & Glazing Notes
How to Specify
- Select ImageTek™ Colour;
- Select appropriate colour, thickness and process;
- Toughened, Toughened Heat Soaked or Heat Strengthened single and IGU.
- All glass to be selected and installed in accordance but not exclusively to the following Australian Standards;
AS 1288 Glass in buildings – Selection and installation
AS 2208 Safety glazing materials in buildings
AS 4666 Insulating glass units
AS/NZS 4667 Quality requirements for cut-to-size and processed glass
AS 1170 Wind & Structural Design Actions
