Feature & Benefits
- Avoids the ‘greening’ inherent in ordinary clear glass;

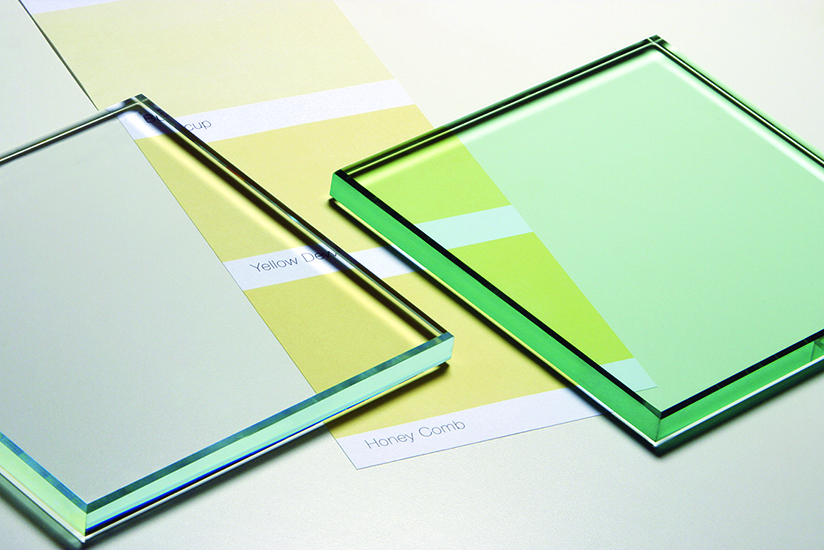

- Displays truer colours when painted or printed;
- Offers clearer vision when compared to ordinary float glass.
Applications

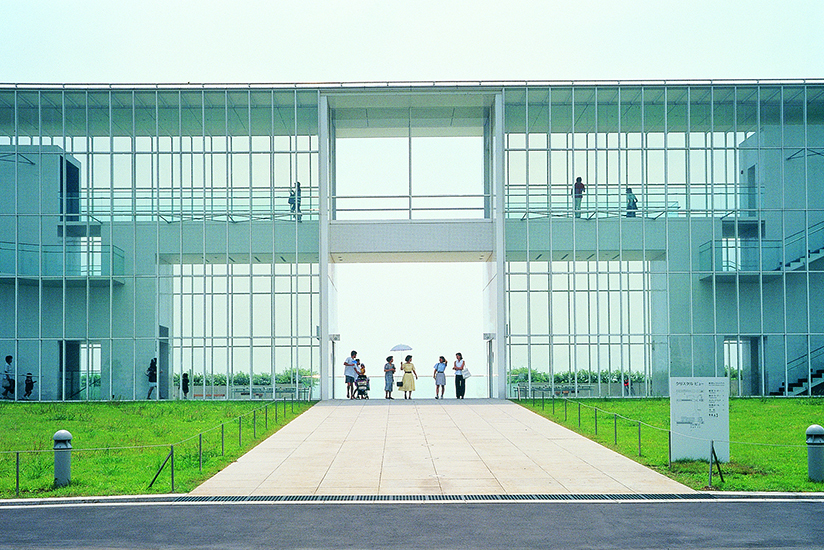

Residential and commercial glazing, painted and printed glass, shopfronts and balustrades.
Range
6/8/10/12/15/19mm
Sizes 5100mm x 3210/3300, 4880mm x 3300mm
Design & Glazing Notes
The low iron content of the glass increases the solar energy transmission which may not be suitable where there is risk of excess heat transmission into a building. The product can however be used in a laminated form combined with energy efficient glass or interlayers which can help maximise visible light transmission whilst meeting energy rating requirements.
How to Specify
- Select Extra Clear low-iron glass;
- Glass thickness 6/810/12/15/19mm;
- Single toughened, toughened heat soaked or heat strengthened, annealed laminated, toughened or heat strengthened laminated and IGU’s;
- All glass to be selected and installed in accordance but not exclusively to the following Australian Standards;
AS 1288 Glass in buildings – Selection and installation
AS 2208 Safety glazing materials in buildings
AS 4666 Insulating glass units
AS/NZS 4667 Quality requirements for cut-to-size and processed glass
AS 1170 Wind & Structural Design Actions
